TG1084

V-Wire Tree Grate

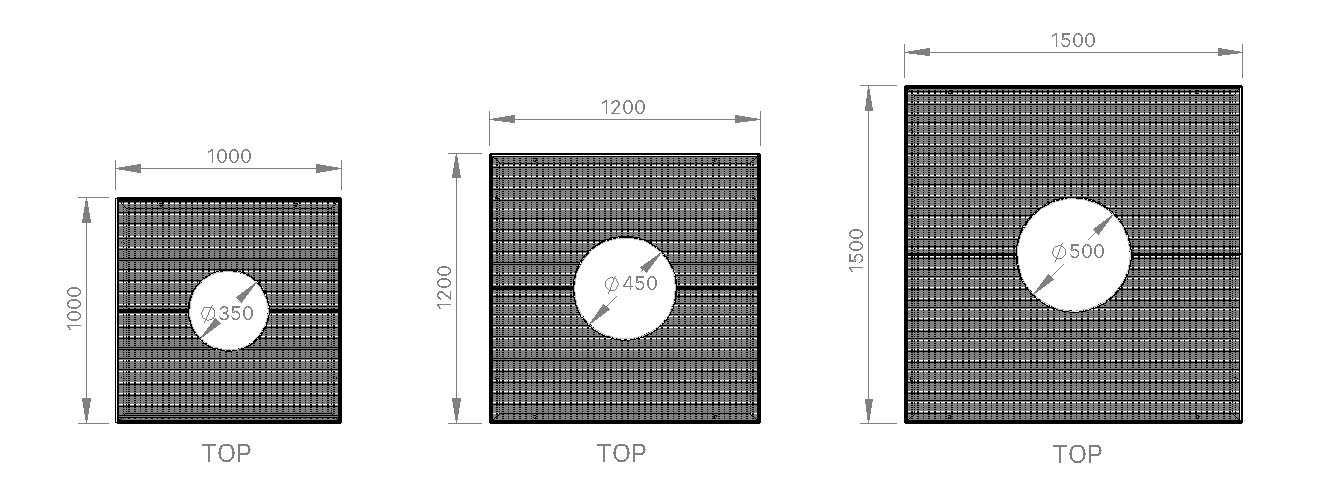

Dimensions

Standard Sizes Available:

1000 x 1000mm with 350mm Diameter Hole

1200 x 1200mm with 450mm Diameter Hole

1500 x 1500mm with 500mm Diameter Hole

1200 x 900mm with 350mm Diameter Hole

*Dimensions are external frame sizes. V-Wire panels sit within frame. Frames are 45mm thick.

Materials

304 Stainless Steel V-Wire with Anti-Slip rated dimpled surface.

Tree grate is also meets heel safe requirements.

Finishes

Polished Stainless Steel

Fixings

Bolt down sub-frame | Cast frame into concrete

Other Options

Custom modifications available, including custom sizes and shapes.

For custom modifications, please supply details when requesting a quote
